What is the maximum pressing pressure of the Cold Press MH3248x50T?

The Cold Press MH3248x50T delivers up to 50T (adjustable 5-50T) of pressing force, which covers standard plywood and veneer panel sizes.

What size of board can this cold press handle?

The working table measures 5000×2500mm, so standard plywood board sizes fit directly for pre-pressing glued veneer stacks.

What power supply does this machine need?

It runs on 380V/415V three-phase, the standard three-phase industrial supply used in most woodworking factories.

Does Shang Rui supply spare parts and after-sales support?

Yes. Spare parts are available for the life of the machine, and our engineers support installation, commissioning and operator training.

All products can provide trial machine videos and photos before delivery. We also support sending samples for trial testing. Please contact us in advance if needed. ●All products can provide trial machine videos and photos before delivery. We also support sending samples for trial testing. Please contact us in advance if needed. ●All products can provide trial machine videos and photos before delivery. We also support sending samples for trial testing. Please contact us in advance if needed. ●All products can provide trial machine videos and photos before delivery. We also support sending samples for trial testing. Please contact us in advance if needed. ●All products can provide trial machine videos and photos before delivery. We also support sending samples for trial testing. Please contact us in advance if needed. ●

MH3248x50T

Name: MH3248x50T
Brand: SHANGRUIJX

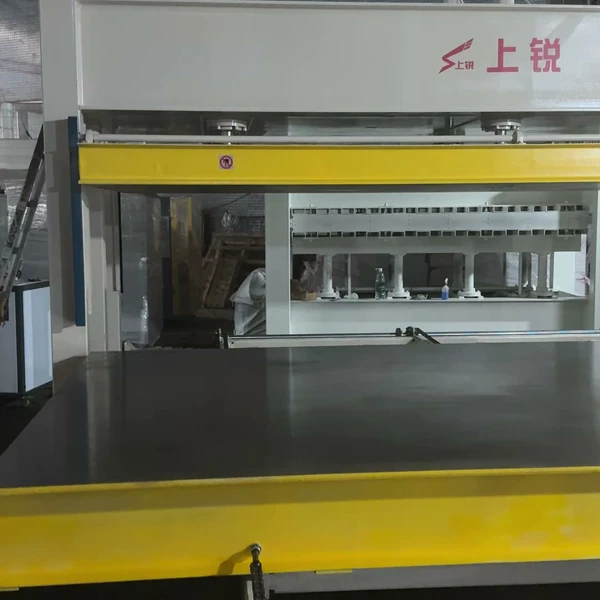

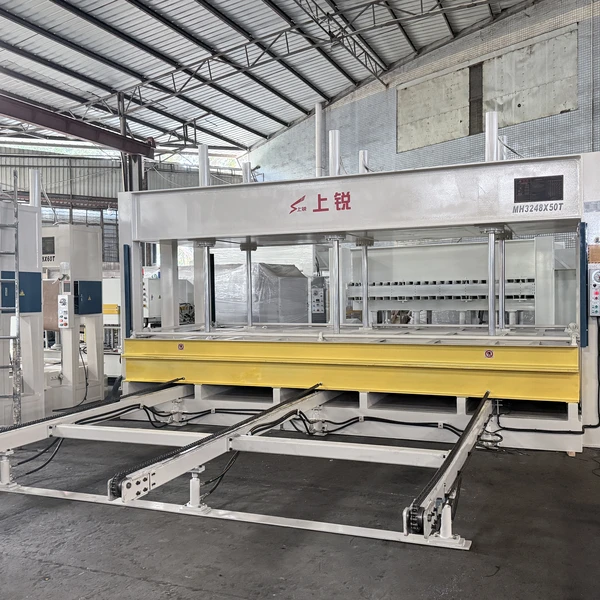

Cold Press

Technical Specifications

Table Size	5000×2500mm
Max Pressure	50T (adjustable 5-50T)
Cylinder Qty & Diameter	6 cylinders, D100/70mm
Plate Opening Distance	1000mm
Power	7.5kW+2.2kW
Flatness	0.15mm/m
Lower Table Load Capacity	5t

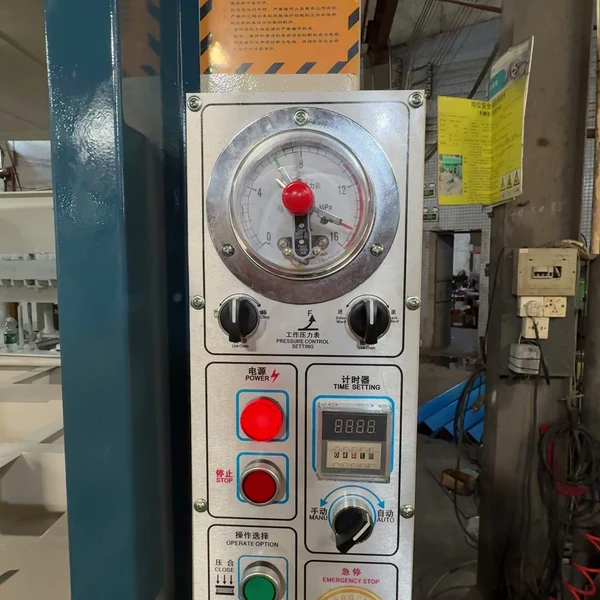

Control Method	Auto in/out button control
Table Processing	Precision-ground upper/lower tables, gantry milling machine processing

cold press machine MH3248x50T from Shang Rui Machinery. table size 5000×2500mm, max pressure 50T (adjustable 5-50T), cylinder qty & diameter 6 cylinders, D100/70mmBuilt for plywood and veneer production lines, this hydraulic cold press applies uniform pressure to glue-wiped veneer stacks before the hot press stage, improving board flatness and reducing rejects. Supplied by Shang Rui Machinery with CE certification on core models, technical support and lifetime spare parts availability.

FAQ

What is the maximum pressing pressure of the Cold Press MH3248x50T?: The Cold Press MH3248x50T delivers up to 50T (adjustable 5-50T) of pressing force, which covers standard plywood and veneer panel sizes.
What size of board can this cold press handle?: The working table measures 5000×2500mm, so standard plywood board sizes fit directly for pre-pressing glued veneer stacks.
What power supply does this machine need?: It runs on 380V/415V three-phase, the standard three-phase industrial supply used in most woodworking factories.
Does Shang Rui supply spare parts and after-sales support?: Yes. Spare parts are available for the life of the machine, and our engineers support installation, commissioning and operator training.
