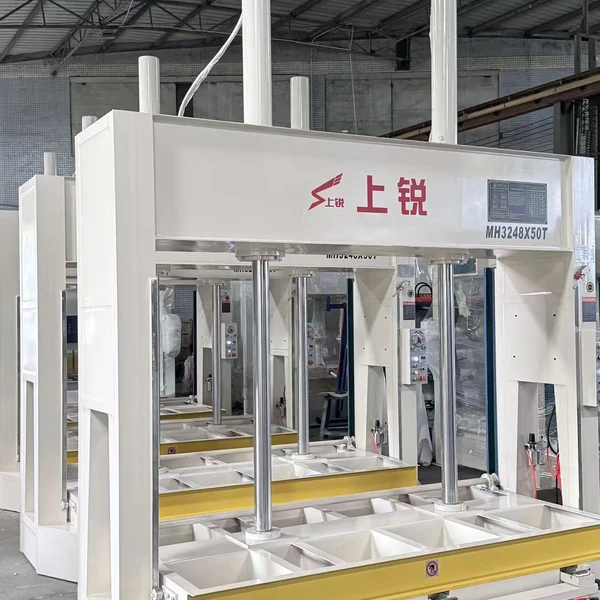

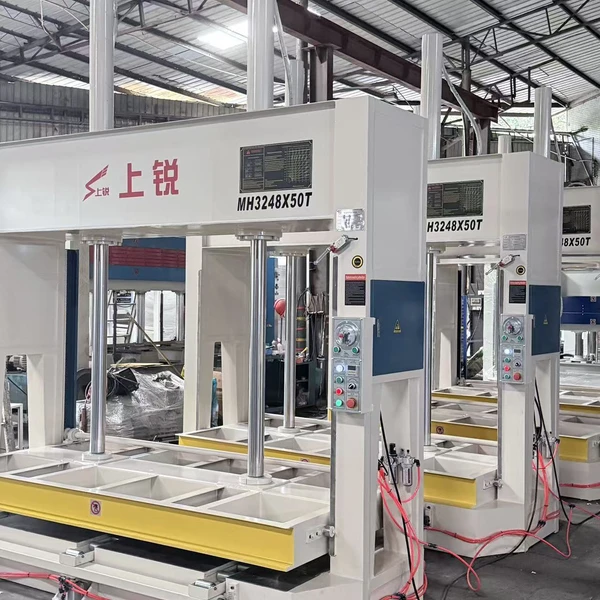

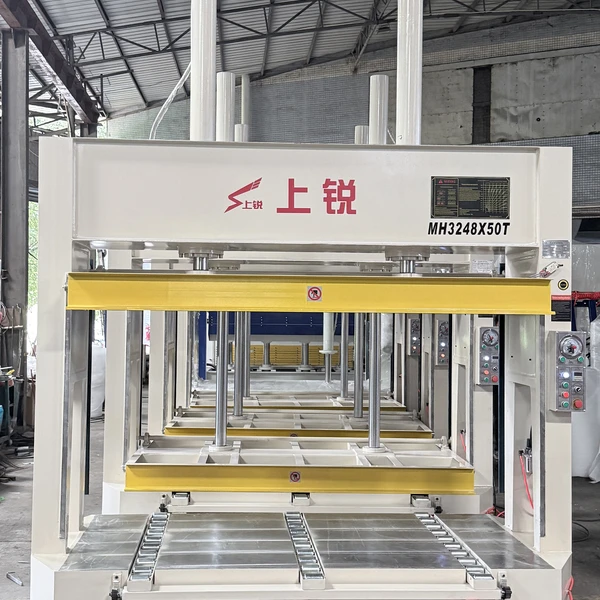

MH3248x50T
Cold Press
Technical Specifications
| Table Size | 2500x1300mm |
| Stroke Height | 1300mm |
| Max Pressure | 50T |
| Cylinder Diameter & Qty | D125/90mm x 2PCS |
| Hydraulic Motor Power | 4KW |
| Voltage | 380V 60HZ 3PH |
| Lower Table | Triple-row cylinder lifting rollers |
| Load Capacity | 1000KG |
| Cylinders Per Side | 3 pcs |
| Cylinder Bore | 100mm |
| Cylinder Stroke | 20mm |
| Max Roller Lift | 15mm |
| Roller Diameter | 50mm |
| Roller Length | 90mm |
| Roller Center Distance | 150mm |
| Rollers Per Row | 10 pcs |
cold press machine MH3248x50T from Shang Rui Machinery. table size 2500x1300mm, stroke height 1300mm, max pressure 50TBuilt for plywood and veneer production lines, this hydraulic cold press applies uniform pressure to glue-wiped veneer stacks before the hot press stage, improving board flatness and reducing rejects. Supplied by Shang Rui Machinery with CE certification on core models, technical support and lifetime spare parts availability.
FAQ
- What is the maximum pressing pressure of the Cold Press MH3248x50T?
- The Cold Press MH3248x50T delivers up to 50T of pressing force, which covers standard plywood and veneer panel sizes.
- What size of board can this cold press handle?
- The working table measures 2500x1300mm, so standard plywood board sizes fit directly for pre-pressing glued veneer stacks.
- What power supply does this machine need?
- It runs on 380V 60HZ 3PH, the standard three-phase industrial supply used in most woodworking factories.
- Does Shang Rui supply spare parts and after-sales support?
- Yes. Spare parts are available for the life of the machine, and our engineers support installation, commissioning and operator training.
