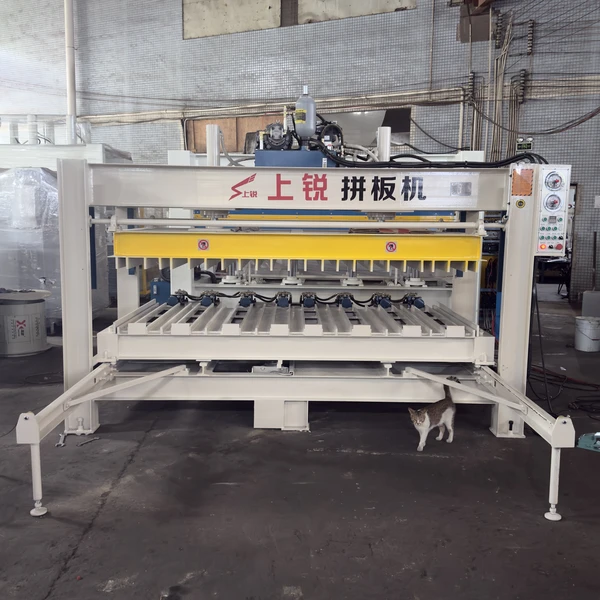

MH1325
Splicing Machine
_up_001.webp)
Technical Specifications
| Table Size | 2500×1300mm |
| Voltage | 380V 50HZ 3P |
| Motor Power | 4+1.1kW |
| Effective Working Stroke | 400mm |
| Main Cylinder | 15T |
| Side Cylinder | 30T |
| Weight | Approx. 3000kg |
finger joint press machine MH1325 from Shang Rui Machinery. table size 2500×1300mm, voltage 380V 50HZ 3P, motor power 4+1.1kWJoins short offcuts into long continuous panels with strong finger joints, raising material utilisation and cutting waste. Supplied by Shang Rui Machinery with CE certification on core models, technical support and lifetime spare parts availability.
FAQ
- What board size does the Splicing Machine MH1325 handle?
- The working table measures 2500×1300mm, covering the common panel widths used in furniture and solid wood production.
- What pressure does it apply?
- The main cylinder delivers 15T with a secondary cylinder at rated, giving even pressure across the full joint length.
- How does it improve material usage?
- Short offcuts are joined end to end into full-length panels, so a factory can use stock it would otherwise scrap. The working stroke is the rated stroke.
- Can it run as part of an automatic finger joint line?
- Yes. It is designed to sit in a finger joint line with a shaper, glue unit, conveyor and cut-off saw, and we can supply the complete line.
