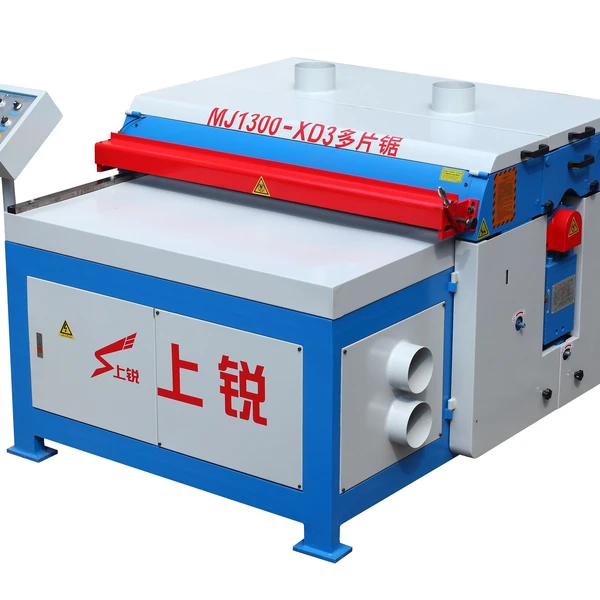

MJ1300-XD3
Multi-blade Saw
_001.webp)
Technical Specifications
| Total Power | 23.5kW |
| Spindle Motor | 22kW, lower blade, height adjustable |
| Feed Speed | Stepless adjustment 0-12m/min |
| Feed Motor Power | 1.5kW |
| Processing Thickness | 5-30mm |
| Processing Width | 1240mm |
| Minimum Processing Length | 650mm |
| Blade Specification | Diameter 205×2.2×74mm, 60T |
| Spindle Diameter | 74mm |
| Ultra-wear-resistant Rubber Rollers | 3 groups front, 3 groups back (12 rollers total) |
| Dust Extraction Port | 150mm |
| Packaging | EPE stretch film |
| Overall Dimensions | Approx. 2300×1760×1200mm |
| Weight | Approx. 2000kg |
multi blade saw machine MJ1300-XD3 from Shang Rui Machinery. total power 23.5kW, spindle motor 22kW, lower blade, height adjustable, feed speed Stepless adjustment 0-12m/minCuts logs and timber into several boards in one pass with high yield and straight edges, suitable for sawmills and panel processing plants. Supplied by Shang Rui Machinery with CE certification on core models, technical support and lifetime spare parts availability.
FAQ
- How many blades does the Multi-blade Saw MJ1300-XD3 use?
- It is a multi-blade configuration that cuts several boards in a single pass, which cuts cycle time and sawing cost per cubic metre compared with single-blade sawing.
- What size of logs or timber can be cut?
- Maximum sawing height is the rated height, covering the log and timber sizes typical of sawmills and panel plants. Please send your cutting list for a specific recommendation.
- What is the material yield like?
- Because several blades work in one pass, kerf loss is spread across more boards, so overall material yield is higher than repeated single-blade cuts.
- Is CE certification available for this machine?
- Yes, CE certification is available for the multi-blade saw series from Shang Rui Machinery.
